Linear Solenoid（Normal）

Solenoids are used in various applications such as familiar office automation equipment, magnetic peripheral devices, and electronic locks.
Let me introduce an example of its usage.

Linear Solenoid（Normal）

※Click on the image to view a larger version.

  • Standard Push-Pull Solenoid

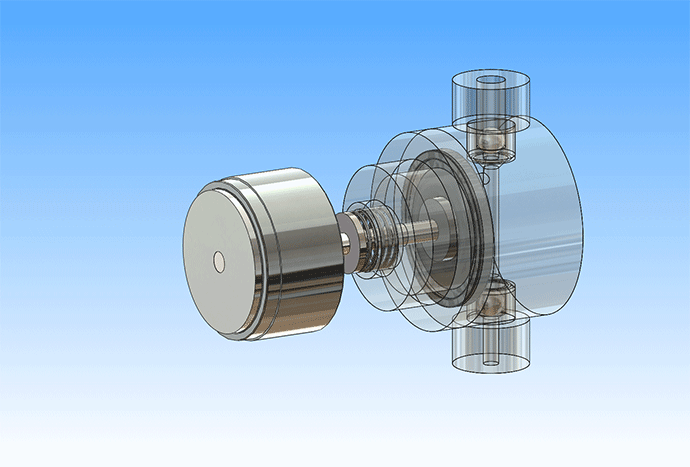

    Diaphragm Pump

    A standard push-pull solenoid is used to drive the diaphragm pump. High precision stroke and high speed are required.

  • Standard Push-Pull Solenoid

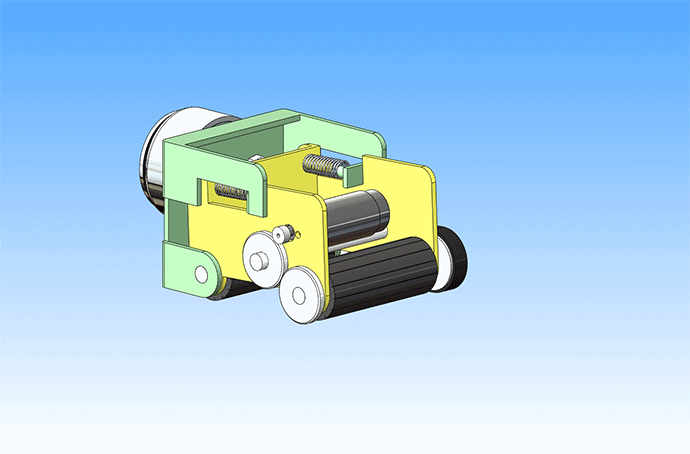

    Drive Roller Lift Mechanism

    Card drive of a card reader. The unit uses a push-pull solenoid in the drive roller lift mechanism.

  • Small Push-Pull Solenoid
    Pen Lift for Pen Plotter

    Pen lift mechanism for pen plotter. It needs to be small, lightweight, and capable of high-speed operation as it is mounted on the movable part.

  • Standard Push-Pull Solenoid

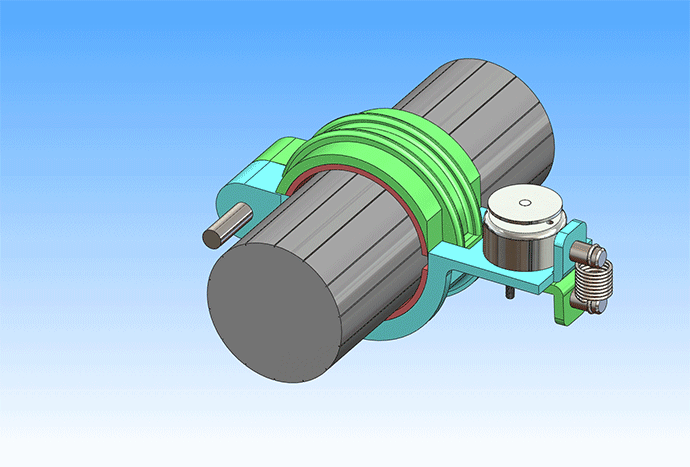

    Friction Brake (1)

    Example of using a push-pull solenoid in the drive mechanism of a drum-type friction brake.

  • Standard Push-Pull Solenoid

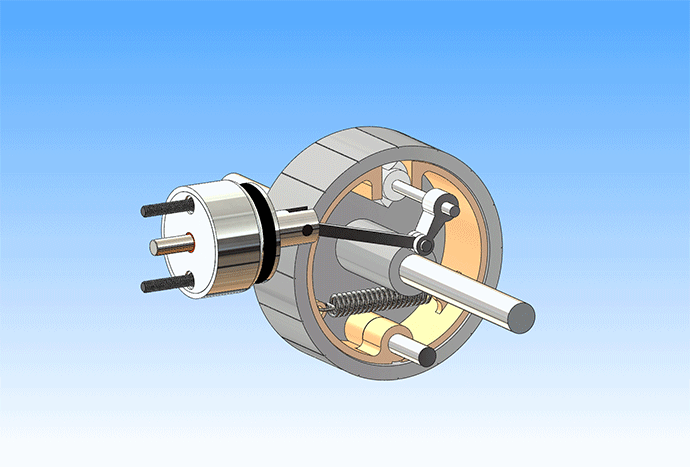

    Friction Brake (2)

    Example of using a push-pull solenoid in the drive mechanism of a drum-type friction brake.

※Click on the image to view a larger version.

  • Open Frame Solenoid

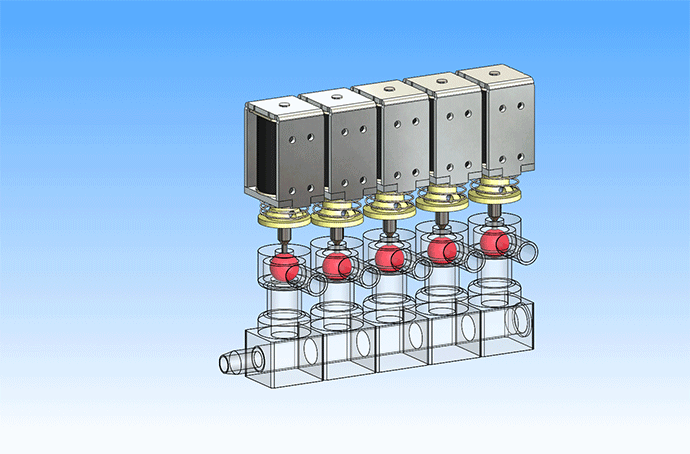

    Air Valve

    Air valve using an open frame solenoid. The spherical valve core is operated by the tip of the plunger. To charge the balloon of an air massage device, a large flow rate is required, so a large-diameter ball is used in the sealing part.

  • Open Frame Solenoid

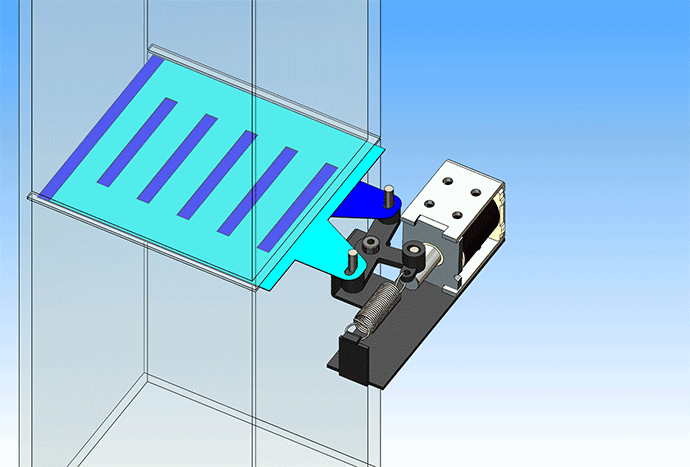

    Flow Control Mechanism

    The sliding shutter is placed in part of the duct and driven by a solenoid. It controls the flow rate by switching the opening area.

  • Open Frame Solenoid
    Gate Opening/Closing Mechanism

    Gate opening/closing mechanism of a game machine. The gate is driven by a solenoid. When not energized, the gate is kept closed by a spring, but it opens when the solenoid is energized. This switches the path of the game ball.
