Linear Solenoid
（Super Stroke）

Solenoids are used in various applications such as familiar office automation equipment, magnetic peripheral devices, and electronic locks.
Let me introduce an example of its usage.

Linear Solenoid（Super Stroke）

※Click on the image to view a larger version.

  • Super Stroke Solenoid

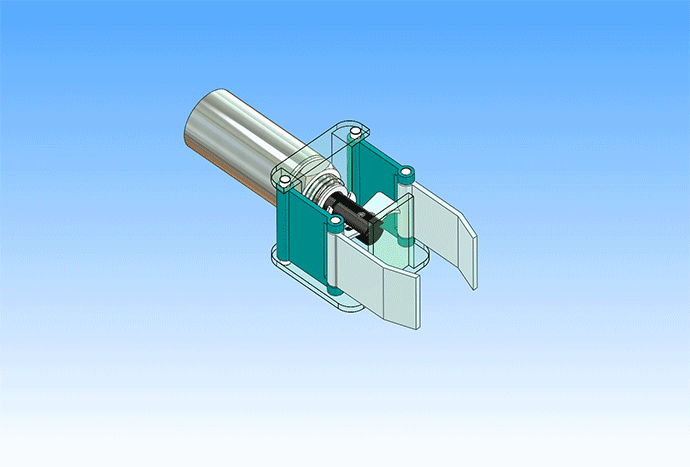

    Clamp Mechanism

    Application of a super stroke solenoid in the handling mechanism of an automatic machine. The clamping force can be adjusted by varying the drive current according to the nature of the object.

  • Super Stroke Solenoid

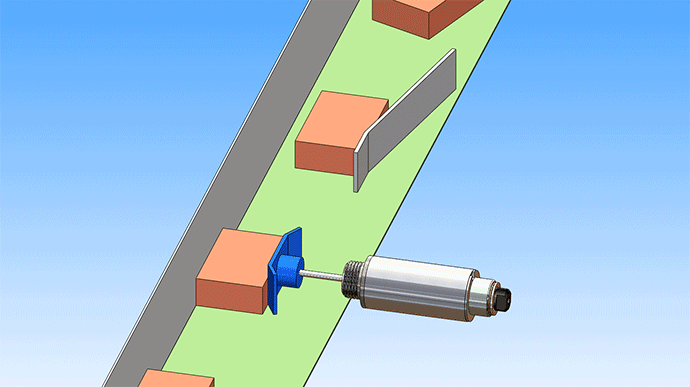

    Workpiece Alignment

    Example of using a super stroke solenoid. The workpiece is aligned by pressing it against a wall with the tip of the shaft. The long stroke of a super stroke solenoid is utilized. Unlike an air cylinder, no piping is required.

  • Super Stroke Solenoid

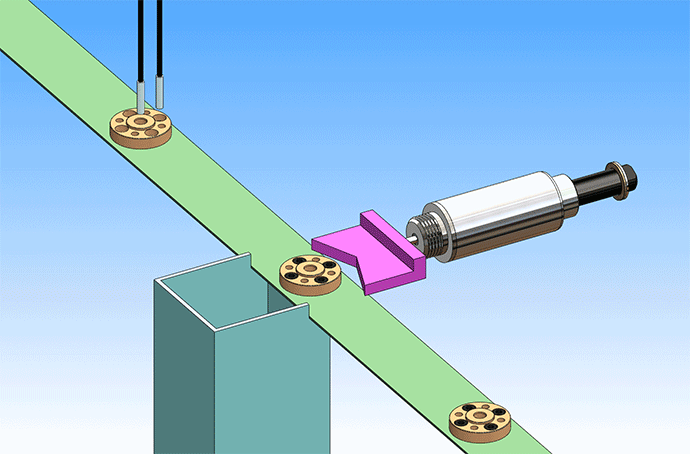

    Defective Product Ejection

    Example of utilizing the long stroke of a super stroke solenoid. Defective products detected by a sensor are ejected from the line by pushing them out.
