Rotary Solenoid（Normal）
Solenoids are used in various applications such as familiar office automation equipment, magnetic peripheral devices, and electronic locks.
Let me introduce an example of its usage.
Rotary Solenoid（Normal）
※Click on the image to view a larger version.
-
Standard Rotary Solenoid

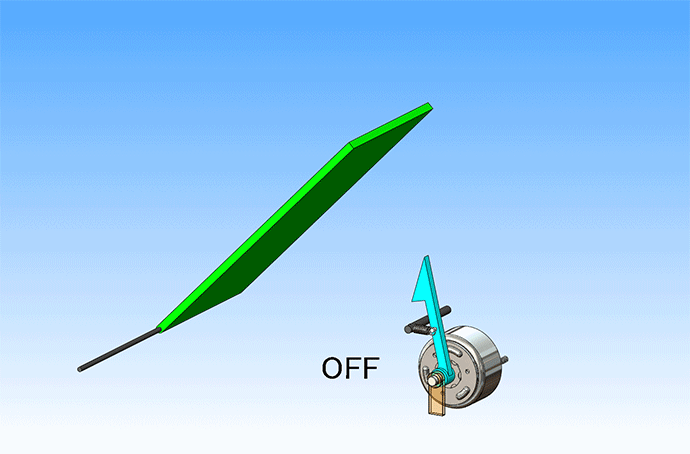

Door Lock
A rotary solenoid is used in the locking mechanism of doors, etc. Since the standard rotary type is unidirectional, a return spring is essential, but here it is used for the holding force of the cam.
-
Standard Rotary Solenoid

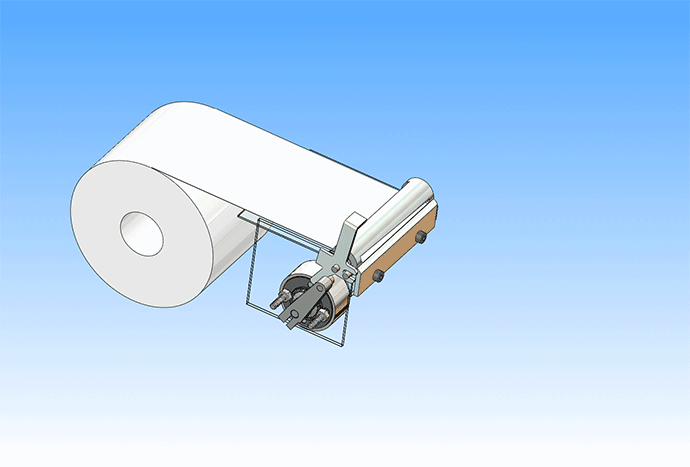

Roll Paper Cutter
A standard rotary solenoid is used in the drive mechanism of the roll paper cutter. This allows for fewer mechanical components and takes advantage of the solenoid's high speed.
-
Standard Rotary Solenoid

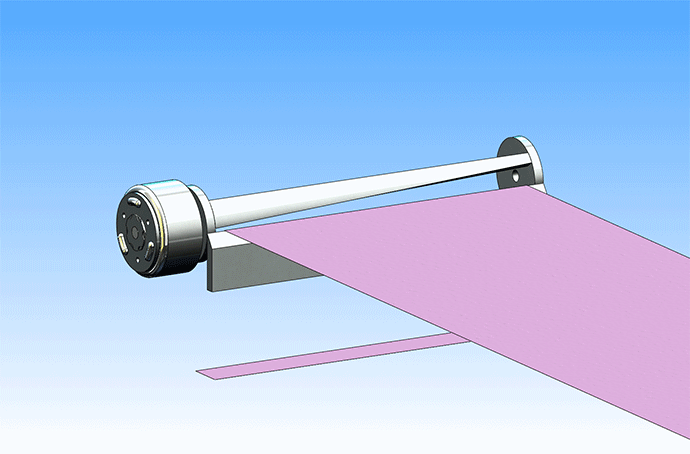

Roll Paper Cutter
A standard rotary solenoid is used in the drive mechanism of the roll paper cutter. This allows for fewer mechanical components and takes advantage of the solenoid's high speed.
-
Standard Rotary Solenoid

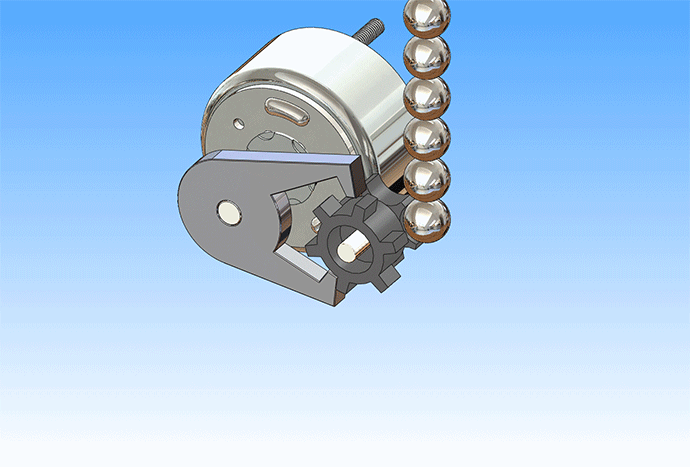

Ball Feed Mechanism
A standard rotary solenoid is used for the cam drive in the ball feed mechanism. It can be achieved with a simple configuration.
※Click on the image to view a larger version.
-
Standard Rotary Solenoid

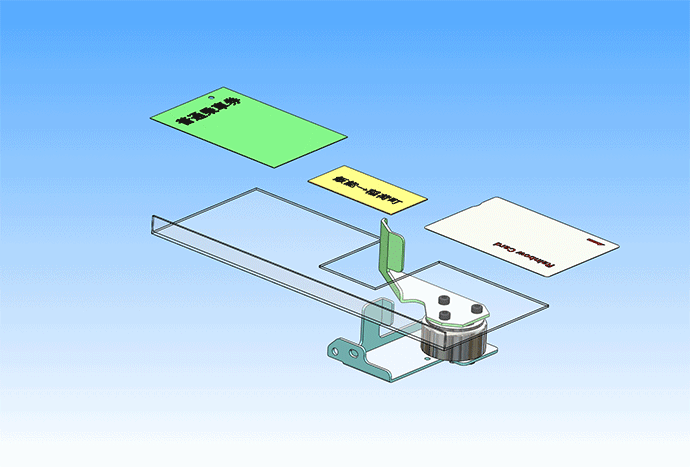

Gate Width Control Mechanism
Automatic ticket gate feed section gate width control mechanism. It can be realized with a simple mechanism.
-
Standard Rotary Solenoid

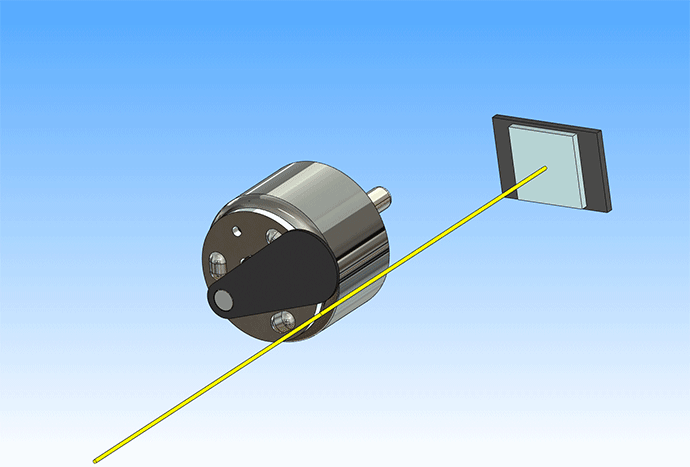

Shutter
A standard rotary solenoid is used to drive the optical shutter. The axial movement of the standard rotary solenoid does not need to be avoided for this application, allowing for a simple configuration.
-
Standard Rotary Solenoid

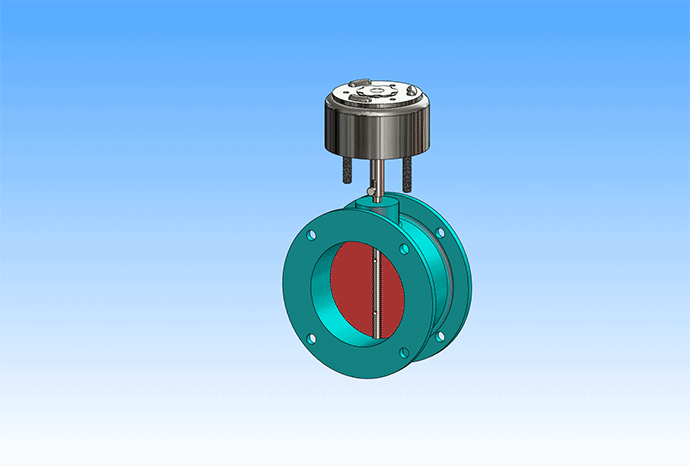

Butterfly Valve
A standard rotary solenoid is used to drive the butterfly valve. A gearbox is not required, allowing for direct connection to the valve.
-
Standard Rotary Solenoid

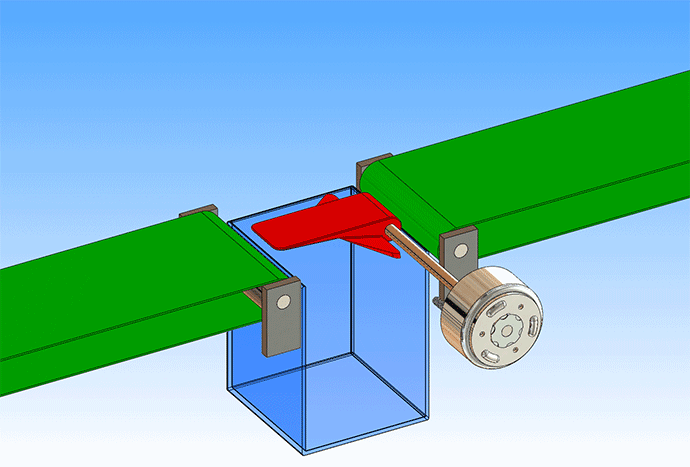

Postal Sorting Machine
A rotary solenoid is used to drive the flag for switching pathways. By using a bidirectional rotary solenoid (RM type), a return spring is not required, allowing for faster operation.
