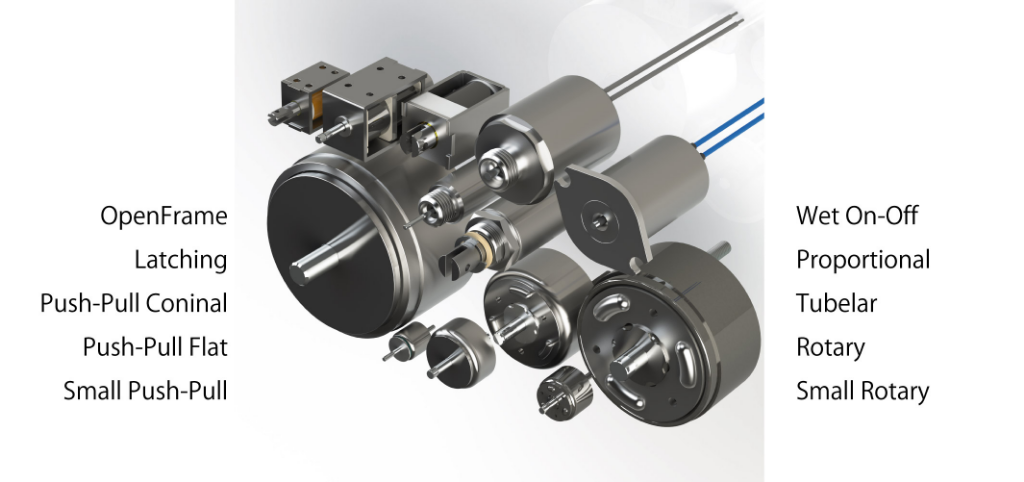

Shindengen Mechatronics' Unique Product Lineup

Shindengen solenoids are centered around standard push-pull solenoids and standard rotary solenoids, and can be applied to a wide range of applications. Additionally, there are options optimized for thrust characteristics and operating stroke according to application requirements, as well as configurations that prioritize cost. Furthermore, we offer proportional solenoids with extremely high control characteristics and automotive-compatible solenoids that balance very high environmental resistance and low cost at a high level. With know-how backed by 50 years of experience, we can meet your individual requirements.

  • Rotary Type

    Since it is a solenoid that directly achieves rotary motion, it helps to simplify mechanisms and improve reliability.

    Product List
  • Linear Type

    We have various types of linear motion solenoids available, ranging from short stroke to long stroke.

    Product List
  • For Hydraulic Equipment

    We have various types of solenoids available for valve operation in construction and machine tools, as well as for automotive use.

    Product List
  • Customized Solutions

    We also handle modified and custom products. Please feel free to consult with us.

    Product List
  • Lock Unit

    High-Reliability and Low-Cost Multi-Purpose Locking Unit.

    Learn more(PDF)
  • Voice Coil Motor

    High-Response and Well-Controlled Voice Coil Motor.

    Product List

Model Selection

①Push-Pull Flat Type

  • Short stroke with high thrust
  • High-efficiency magnetic circuit with auxiliary magnetic poles
  • Ideal for loads requiring high holding force
  • High thrust at the final point
  • Available in a wide range of sizes from small to large

②Push-Pull Conical Type

  • Suitable for applications with large stroke
  • High-efficiency magnetic circuit with auxiliary magnetic poles
  • Relatively small change in thrust with stroke
  • Available in a wide range of sizes from small to large

③Tubular (Super Stroke)

  • Suitable for applications with large stroke
  • Can be installed in narrow spaces
  • Small outer diameter
  • Selectable push and pull types

④Open Frame Type

  • Suitable for cost-prioritized applications
  • Simple structure

⑤Latching Type

  • Suitable for applications requiring long holding time
  • Energy-saving operation (e.g., battery-powered)
  • Bidirectional type can hold in two positions

⑥Proportional Type

  • For position control (e.g., valve opening control, internal combustion engine throttle control)
  • For pressure control (e.g., pressure control valves)

⑦Rotary Type

  • Driving rotating loads (no need to convert linear motion to rotation)
  • Built-in high-efficiency conversion mechanism to obtain rotational torque
  • High-efficiency magnetic circuit equipped with auxiliary magnetic poles

⑧VCM (Moving Coil Type)

  • For high-speed drive
  • For bidirectional drive
  • For pressure control
